DP11

Description

Floor tiles may deform due to thermal expansion, so movement joints are used to absorb stress between the structure and tiles. ARFEN DP stainless steel series provides durable, long-life solutions for movement and control joints in tile and ceramic coverings, and is suitable for marble, ceramics, terrazzo, stone, and similar materials. ARFEN also offers profiles in stainless steel, aluminum, and PVC.

DP11 features a TPV middle section with stainless steel edges, with an option to use neoprene instead of TPV. Recommended application areas are 4.80×4.80 m (min) to 6.00×6.00 m (max) indoors, and 3.60×3.60 m (min) to 4.80×4.80 m (max) in areas exposed to moisture or sunlight.

Technical Specifications

Material Type Stainless Steel

Additional Specifications

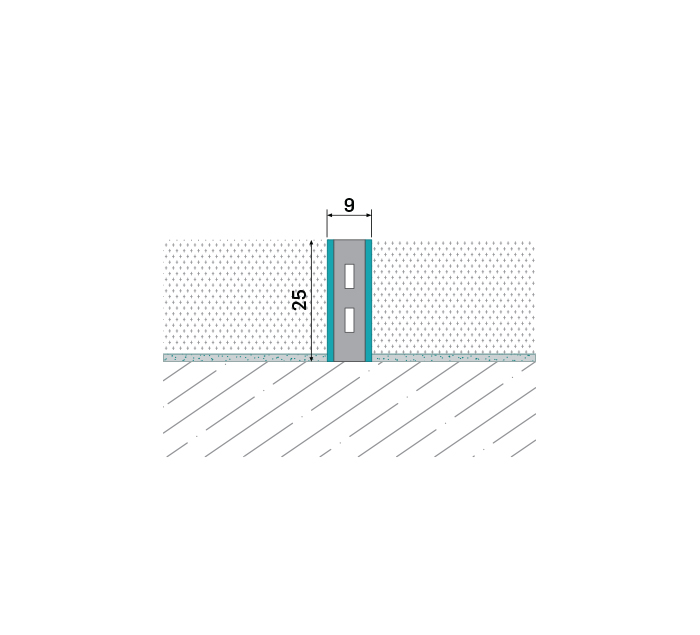

Height of Profile: 25 mm
Width: 9 mm
Profile Length: 3,00LM
Color Alternatives: Grey and Cream
×
